EMI Filters
Noise suppression in power supply input and output circuits.
Product Category

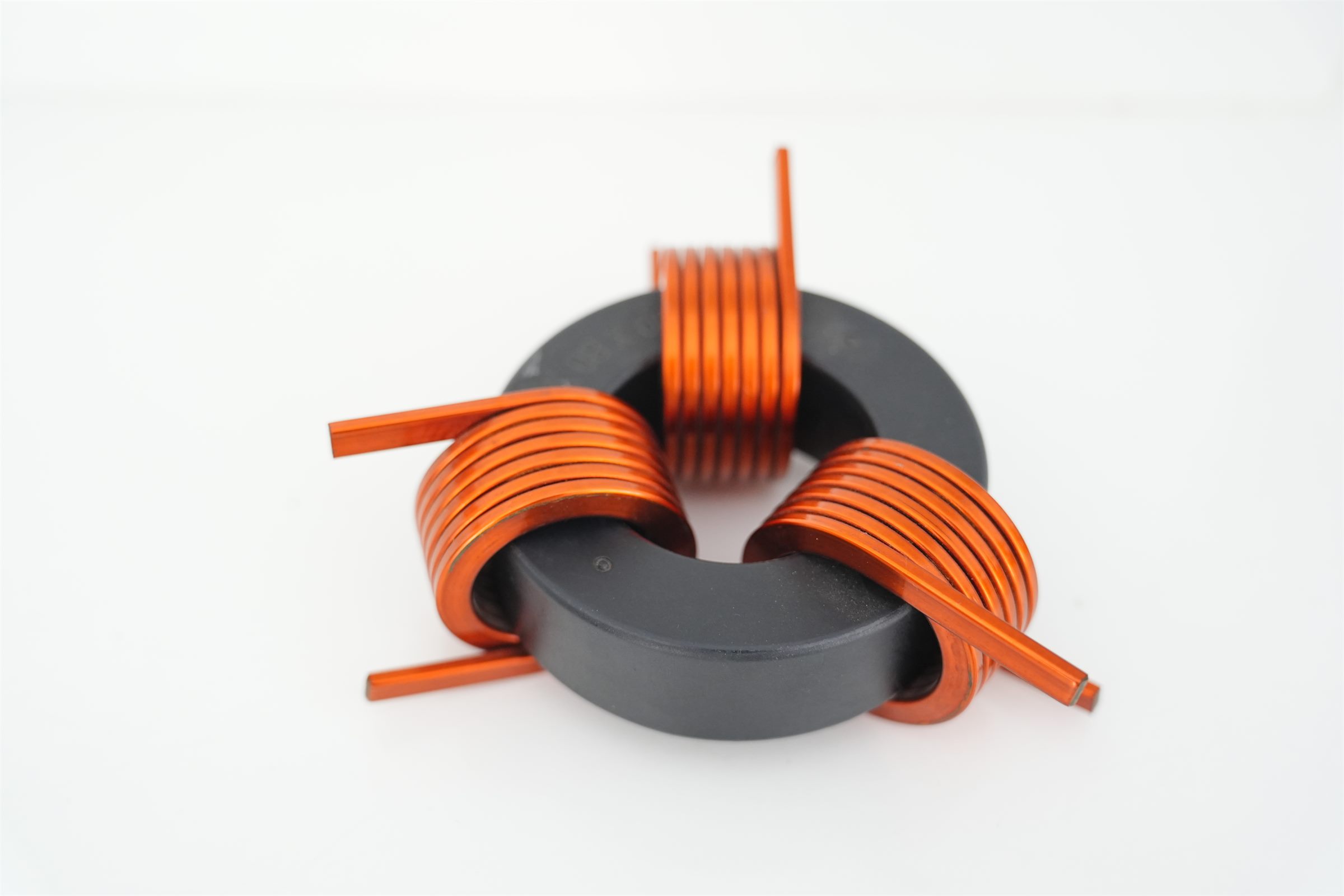

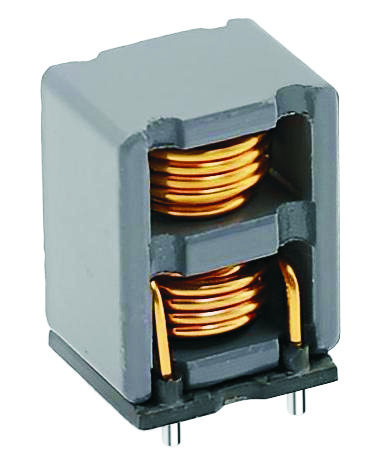

Common Mode Chokes
MiDEN common mode chokes deliver stable attenuation for differential and common mode noise in power-sensitive and high-speed applications.
Product Introduction
Common mode chokes are used for EMI rejection in power lines and signal interfaces. Keywords: inductor manufacturer, power inductor supplier, high frequency transformer manufacturer, custom magnetic components.
Product Advantages
- High impedance at target frequencies
- Low DC resistance and low signal loss
- SMD, through-hole and custom package support
- High insulation resistance and RoHS support
Specification Range
| Impedance | 100 Ohm - 2000 Ohm |
|---|---|
| DCR | 0.05 Ohm - 5 Ohm |
| Rated Current | 0.1A - 10A |
| Frequency | DC - 100 MHz, model dependent |
Application Industries
Signal Protection
USB, HDMI and communication signal line filtering.
Networking Equipment
Magnetic components for industrial and communication hardware.
FAQ
Common Mode Chokes FAQ
Common questions about common mode choke selection, customization, applications and RFQ preparation.
What information is needed to request
Please provide target electrical value, current or power level, frequency, dimensions, mounting style, operating temperature, application and estimated quantity.
Can MiDEN customize this product category?
Yes. MiDEN can discuss custom magnetic components based on drawings, samples, electrical targets and application requirements.
Which applications commonly use
Common Mode Chokes are used in industrial electronics, power supplies, converters, chargers, lighting drivers, communication equipment and control systems depending on the design.
How does MiDEN support quality control?
MiDEN supports sample confirmation, electrical testing, visual inspection and compliance document communication for project requirements.
How can I get a quotation?
Contact Ruby Liu by email or WhatsApp with your specifications, drawing or sample information. The team will review the requirement and respond with RFQ support.
